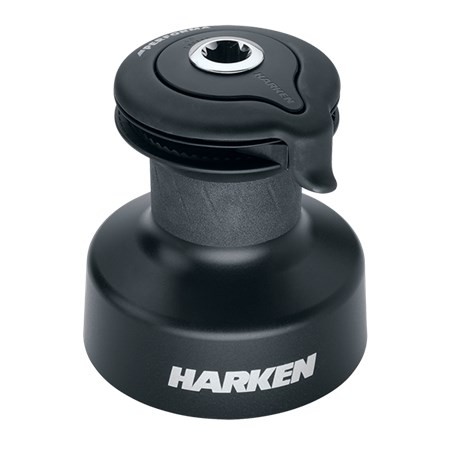

40.2STP
Performa 2 Speed Alum Self-Tailing Winch
All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Technical specifications · Harken 40.2STP
| Drum diameter (T) | 80 mm |
|---|---|
| Base diameter (B) | 157 mm |
| Height (A) | 175 mm |
| Weight | 3.8 kg |
| Line entry height | 82 mm |
| Minimum line diameter | 8 mm |
| Maximum line diameter | 12 mm |
| Bolt circle diameter | 123 mm |
