46STQP

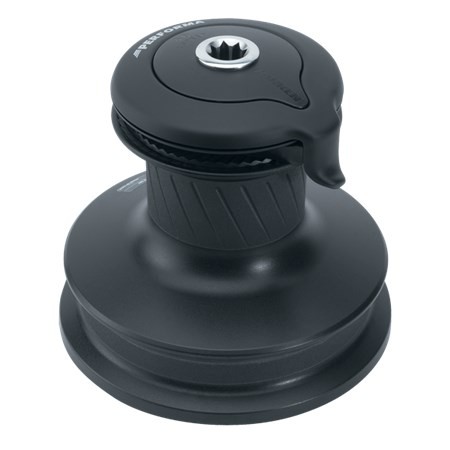

Performa Self-Tailing Alum Quattro Winch
All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. The Quattro model is an all-in-one aluminum winch used on boats that require extremely fast winches to handle large asymmetrical spinnakers, but also need power to trim the genoa upwind. The 2-speed Quattro features two drum diameters and four line speeds.
Technical specifications · Harken 46STQP
| Base diameter (B) | 218 mm |
|---|---|
| Height (A) | 202 mm |
| Weight | 6.2 kg |
| Minimum line diameter | 8 mm |
| Maximum line diameter | 14 mm |
| Bolt circle diameter | 150 mm |
Drum and line-entry dimensions refer to the upper drum. The lower drum diameter is 188 mm and its line-entry height is 24 mm.
