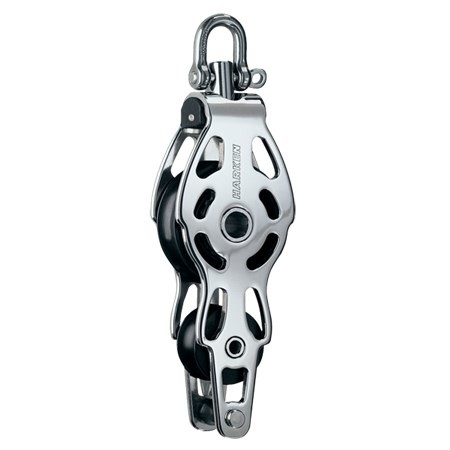

6081
75mm SS ESP Fiddle w/Becket
Cruising ESP blocks complement our existing blocks in looks and function, but are simpler in design and construction. Sheaves feature sleeve bearings to handle high static loads and are ideal for halyards or limited purchase systems on cruising boats.
Technical specifications · Harken 6081
| Sheave diameter | 75;46 mm |
|---|---|
| Length | 241 mm |
| Weight | 744 g |
| Shackle pin diameter | 8 mm |
| Maximum line diameter | 19 mm |
| Maximum working load | 1587 kg |
| Breaking load | 3175 kg |
The lock-off is intended for temporary holding and does not replace a cleat or rope clutch.
In stacked installations, the upper block is rated at two thirds of the stated maximum working and breaking loads.
