716

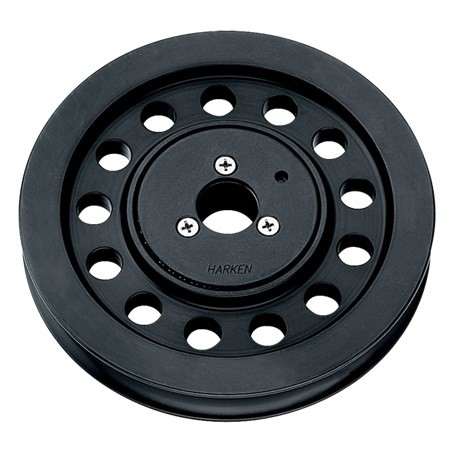

6.00 (152mm) Hi-Load Sheave
High-load sheaves are offered as replacement parts or for use in special applications. Their bearing system combines sideload-carrying balls with a PTFE composite bushing to carry radial loads.
Technical specifications · Harken 716
| Sheave diameter | 152 mm |
|---|---|
| Width | 25 mm |
| Weight | 652 g |
| Centre pin diameter | 22.28 mm |
| Line diameter | 16 mm |
| Maximum wire diameter | 10 mm |
| Maximum working load | 8165 kg |
| Breaking load | 23133 kg |
The stated breaking load is based on a solid 304 stainless steel shaft.
